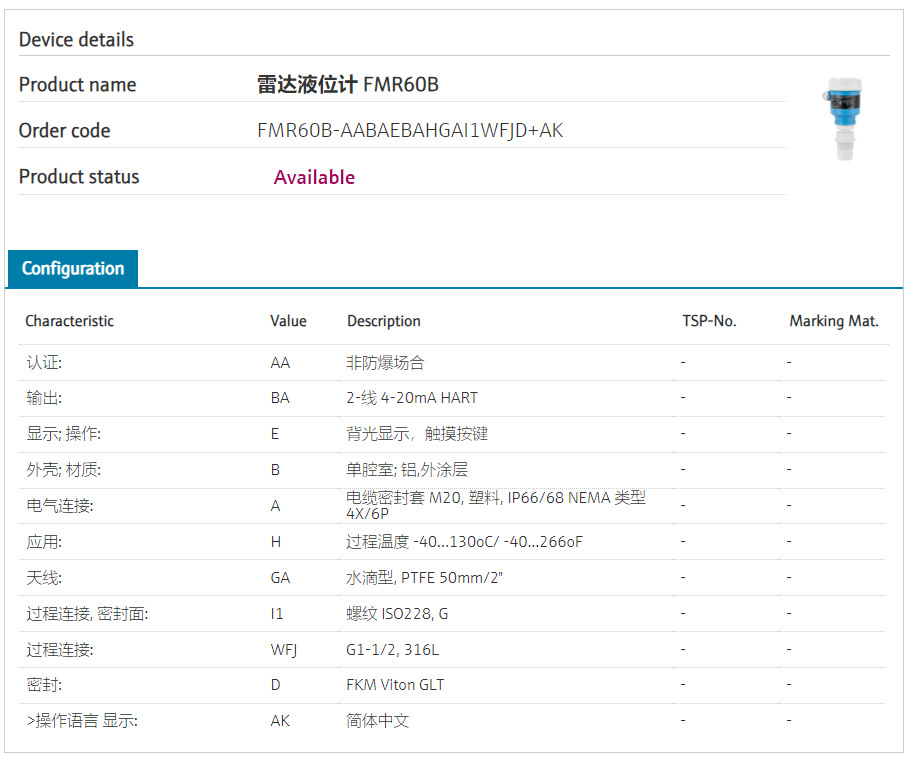

雷达液位计FMR60B-AABAEBFHGAI1WFJD+AK

Micropilot FMR60B — 80 GHz雷达液位计FMR60B-AABAEBFHGAI1WFJD+AK
量身定制，操作加便捷
产品规格参数
测量精度
+/-1 mm (0.04 in)
过程温度
-40 … +200 °C (-40 … +392 °F)
过程压力（绝压）/大过压限定值
Vacuum...20 bar (290 psi)
大测量距离
50 m (164 ft)
主要接液部件
PVDF, PTFE or PEEK
应用领域
Micropilot FMR60B是80 GHz雷达物位计的家族成员。在基本

液体应用中连续进行非接触式液位测量，仪表带小尺寸过程连接。内置操作向导，引导用户轻松执行仪表的调试、功能安全及验证测试操作，操作非常便捷。采用Heartbeat Technology心跳技术，支持仪表在线自校验和自监测，及时识别异常工况，提升了过程安全性，提高了生产效率。
Micropilot FMR60B适用于自由空间的液位测量，大量程为50米，对于有内部存在干扰装置的罐体有波束聚集效果。
过程连接：螺纹或法兰
过程温度：–40...+200°C (–40...+392°F)
过程压力：–1...+20 bar (–14.5...+290 psi)
大量程：50 m (164 ft)
测量精度：±1 mm (0.04 in)
W波段：80 GHz工作频率
通过国际防爆认证、WHG防溢认证、SIL认证、船级认证，以及5点或10点工厂标定
优势
人机界面直观明了，提供引导式仪表调试和验证向导，操作简单
显示屏上显示推荐操作，帮助用户轻松排除故障
引导式SIL锁定、验证测试和功能安全测试操作，降低了系统性错误发生风险
安全设计理念，遵循IEC 61508标准研发
采用Heartbeat Technology心跳技术，支持仪表在线自监测、自校验和自诊断，提高生产力
配置产品，下载CAD设计图
配置
测量原理
雷达物位仪
特点/应用
For simple continuous non-contact level measurements in
liquids, pastes, and slurries; Not influenced by changing media,
temperature differences, gas phases or steam;
For vessels with many internals
特点
Heartbeat Technology;
SIL 2 according to IEC 61508;
Bluetooth® commissioning;
Operation and maintenance with SmartBlue App;
HistoROM;
RFID TAG for easy identification
电源/通信
2-wire (HART/ PROFIBUS PA)
PROFINET with Ethernet-APL
Bluetooth® wireless technology
频率
W-Band (~80 GHz)
测量精度
+/-1 mm (0.04 in)
环境温度
-40 … +85 °C (-40 … +185 °F)
过程温度
-40 … +200 °C (-40 … +392 °F)
过程压力（绝压）/大过压限定值
Vacuum...20 bar (290 psi)
主要接液部件
PVDF, PTFE or PEEK
过程连接
Thread: G3/4" and 1-1/2", MNPT 3/4" and 1-1/2";
Flange: UNI DN80...DN150;
Mounting bracket
大测量距离
50 m (164 ft)
通信
HART/ PROFIBUS PA
PROFINET with Ethernet-APL
Bluetooth® wireless
technology and app (optional)
证书和认证
IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex,
INMETRO Ex, NEPSI Ex, UK Ex
安全认证
Overfill protection WHG;
SIL 2
设计认证
Acceptance test certificate 3.1, EN10204;
EU Food Contact Material (EC) 1935/2004;
US Food Contact Material FDA CFR 21;
Declaration of Conformity ASME B31.3;
AD2000;
PMI test;
CRN approval
船级认证
ABS, LR, BV, RINA, DNV
选项
Display,
Customized settings,
App 'SmartBlue' for commissioning
and operation via Bluetooth
Gas-tight implementation;
Overvoltage protection;
PWIS free
应用限制
Process temp. <-40°C (-40°F) or > 200°C (392°F) -> FMR62B
Very aggressive media -> FMR62B
Turbulences, stilling well and bypass -> FMR62B
Strong foam and interfaces --> FMP5x
